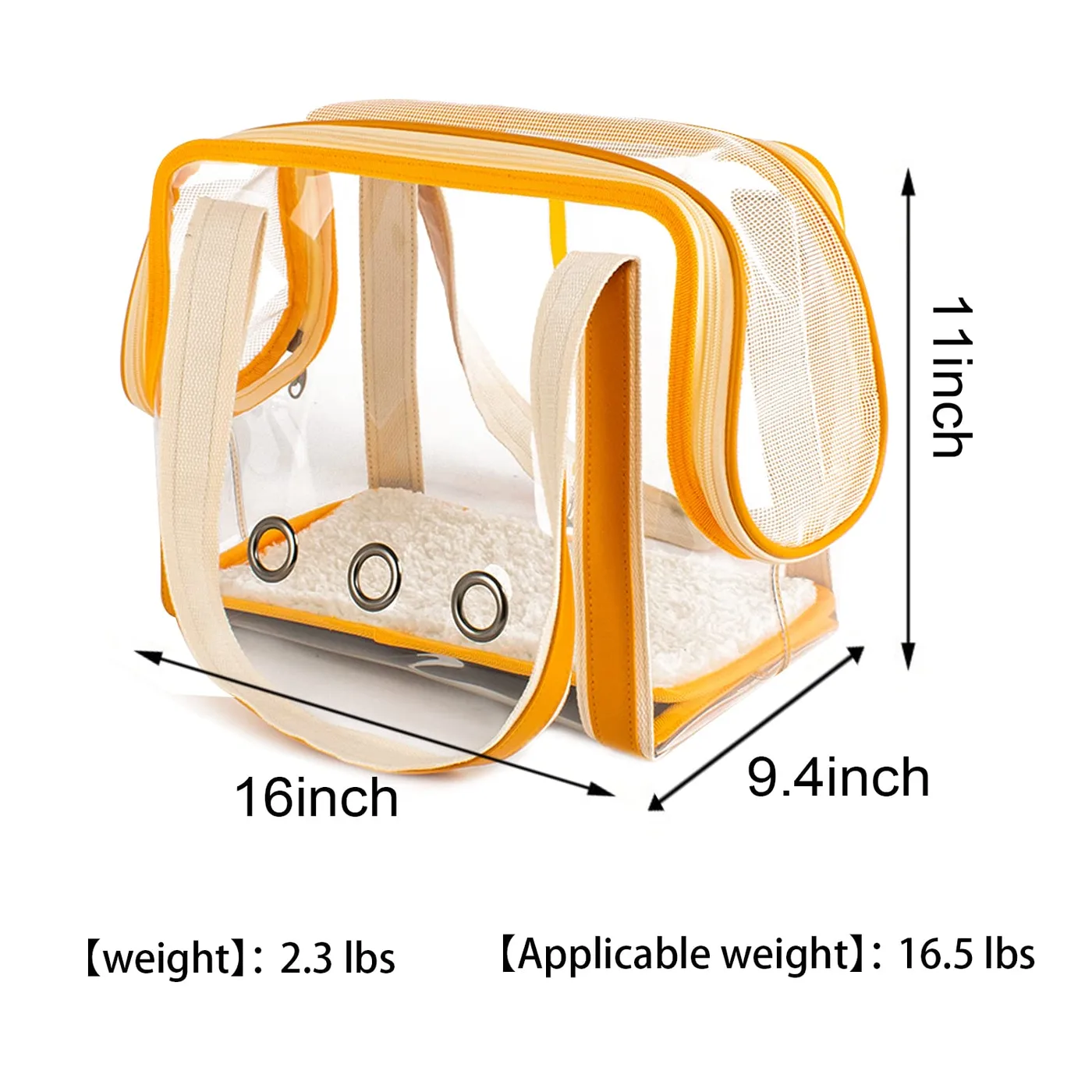

Custom pet carrier development for pet carrier accessory starts with a tech pack: dimensions, fabric weight, hardware finish and the target test standard.

Friction Targets by Carrier Floor and Contamination

Friction is a pair property: bowl base against carrier floor under a defined condition. Reporting a coefficient for silicone without naming the counter-surface is incomplete. Common carrier interfaces include coated woven polyester, moulded PP trays, EVA liners and removable textile mats, each with different texture, compliance and response to water.

A practical test places the bowl at a stated fill on the horizontal substrate, waits for a controlled dwell and pulls at constant low speed. Static coefficient is calculated from force at first movement divided by normal load; kinetic force can also be recorded. A separate inclined-plane method is useful for screening, but results should not be mixed without explanation.

Surface preparation must be reproducible. Dry means cleaned and conditioned, wet means a defined water volume spread over a known area, and oily means a controlled food-compatible film rather than an arbitrary smear. Pull direction is repeated along warp, weft and diagonal on textile floors because weave direction changes resistance.

Test at 25%, 50% and 100% of usable fill. A heavy full bowl generates more normal force and can hide poor compound performance; a nearly empty bowl exposes the weakest condition. A non-slip specification is complete only when coefficient, pull force, carrier substrate, contamination and fill state appear in the same test record.

TPR, Silicone and Rubber Compound Selection

Thermoplastic rubber, cured silicone and vulcanized rubber can all create grip, but their chemistry, processing and ageing differ. TPR overmoulds efficiently onto selected rigid plastics and supports low-cost colour. Silicone offers broad temperature stability and can be removable, while conventional rubber can deliver high grip but requires careful formulation and odour control.

Hardness is the first screening variable. Shore A 45-60 conforms well to textured floors; 60-70 resists deformation under heavy bowls; below 40 can feel tacky and collect dust. Hardness alone does not predict friction because surface oil, filler, texture and cure determine the real interface. Each commercial colour should be measured as its own formulation.

Food proximity raises documentation requirements even when the foot is nominally outside the bowl. A removable ring may be handled during washing and can touch nested food surfaces in transit. Supplier grade, pigment, plasticizer or process oil, cure system and intended-contact statement should therefore be recorded. Migration assessment follows realistic contact rather than the marketing name of the elastomer.

Restricted-substance review can draw on chemical information from ECHA and the California lists maintained by OEHHA. Export files should include formulation declarations and change notification for rubber oil, pigment, filler and curing agent, since those components often change while hardness stays nominally identical.

Odour and staining are acceptance properties. Condition complete bowls in sealed glass at warm temperature, compare odour with an approved reference and inspect white carrier fabric for transfer under pressure. Choose an elastomer by measured friction, ageing, odour and formulation control; Shore hardness or the word rubber cannot predict export performance.

Contact Band Geometry and Pressure Distribution

Grip depends on how much of the foot actually contacts the floor. A decorative ring may touch only at four high points after bowl warpage, while a narrower but flatter band contacts continuously. Pressure-sensitive film, transfer ink or a glass-plate light test can reveal the real footprint under empty and filled conditions.

A perimeter band 6-14 millimetres wide is efficient on smooth floors. On ribbed PP, segmented pads long enough to bridge local valleys may perform better. The elastomer should project 0.5-1.5 millimetres below the rigid base after tolerance so rigid plastic never bottoms out first. Excess projection makes the bowl wobble and increases peeling force at the edge.

Drainage breaks prevent a continuous ring trapping water. They should be broad and placed at natural low points, but their combined loss of contact area belongs in friction validation. Raised microtexture can break a water film, while deep decorative texture reduces real area and collects food oil. Tool polish and pattern need approval on production parts.

Floor seams and crumbs create local obstacles. Four isolated feet may rock when one lands on a seam; a compliant ring can bridge it. Test across a simulated 2-3 millimetre carrier seam and over a controlled small particle, recording rocking and minimum remaining contact. The product should not rely on an unrealistically perfect flat plate.

Contact pressure also affects soft liners. A narrow hard rib can indent EVA, making the bowl feel locked while permanently marking the carrier. Broad pads distribute load and permit removal. The correct base geometry maintains visible contact around floor texture and seams without trapping water, bottoming rigid plastic or permanently indenting the liner.

Overmould Keys, Adhesive Bonds and Removable Rings

The joint between bowl and grip material is often the first durability failure. Overmoulded TPR may depend on chemical compatibility, mechanical keys or both. Silicone rings can be removable and avoid bonding, while adhesive-backed rubber is inexpensive but vulnerable to detergent, edge peel and warm storage.

Mechanical keys should pass through or around the rigid base with enough cross-section to resist shear. Undercuts must fill completely, and the interface should remain outside food traps. Sectioned tool-trial parts reveal short shots and voids that are invisible from the exterior. Cavity marks link a weak key to its tool position.

Peel force is measured at a defined strip width, angle and speed. A target such as 35-60 newtons per 25 millimetres may suit a broad overmould, but the final value should match geometry and use. More important, the force is repeated after 100 detergent cycles, warm humidity and sliding abrasion. Edge lift is rejected before complete separation because it becomes a dirt trap.

Removable rings need keyed geometry that prevents rolling off during use yet releases for drying. Installation should be obvious, with no orientation that appears correct but leaves the bowl unstable. A spare ring can extend service life, but the replacement must carry the same compound code and fit.

Routine glue repair is inappropriate near a food-use product unless the adhesive and process are approved. Rework can alter compliance, odour and flatness. Destructive samples should be taken after each overmould setup to confirm that the apparent outer bead is backed by complete key penetration, since a cosmetic skin can conceal an air pocket that opens only after washing. The section photographs stay with the setup record and give later inspectors a direct comparison when peel force begins to drift. Bond approval requires aged peel and complete key fill, while removable-ring approval requires retention, intuitive assembly and unchanged friction after repeated removal.

Bowl Ribs, Base Flatness and Centre of Gravity

A high-friction ring cannot compensate for a warped or top-heavy bowl. Base flatness determines contact, and centre of gravity determines whether applied force causes sliding or tipping. The design should preferably slide in a controlled way before overturning, because a fixed base with a tall load can convert muzzle force directly into a spill.

Rigid bowl ribs should radiate from the centre or form shallow rings, using about 45-65% of nominal wall thickness to avoid sink. A shallow dome adds stiffness without creating a hard central point below the foot. Finished rock on a reference plate can be limited to 1.0-1.5 millimetres before the elastomer is fitted.

The support polygon is defined by actual contact, not the outside decorative skirt. Test force at the rim in eight directions with the bowl at 25%, 50% and 100% fill. Opposite-edge lift should remain below 5 millimetres at the specified side load, and water should remain below the spill line. Tall elevated or insulated forms need a wider band than low dishes.

Compound compression changes loaded height. Measure the bowl level and rim tilt after ten minutes at full capacity. Uneven pad thickness can create a constant slope that moves water toward one edge. Gauge pad projection by cavity and retain a maximum-tilt limit sample.

A carrier tether may prevent travel but should not hide a poor base. It also must not narrow the support polygon by pulling one side upward. Flatness, support polygon and centre of gravity decide whether friction produces stability or converts a side force into an overturning moment.

Wash, Heat, Oil and Abrasion Ageing

New elastomer data are insufficient because non-slip surfaces change during use. Detergent extracts oils, heat changes compression set, food fats coat microtexture and abrasion polishes high spots. The qualification sequence should combine these exposures and repeat friction after each stage rather than only inspect appearance.

A useful program includes 100 wash or dishwasher cycles at the labelled condition, 24 hours of warm humid storage, 10,000 short sliding strokes and repeated contact with a controlled food-oil film. Record hardness, mass, dimensions, odour, tack, colour transfer, peel or retention and dry-wet-oily friction before and after.

Cleaning chemistry should reflect household use without claiming resistance to every solvent. Neutral detergent and a defined dishwasher product can be included; strong bleach or alcohol exposure is tested only if the care instruction permits it. Swelling after oil contact may temporarily increase grip while weakening the bond, so both friction and geometry are measured.

Abrasion equipment must use the actual counter-surface or a justified surrogate. Smooth steel can polish a foot differently from woven polyester. Debris generated during the test is collected and inspected because black powder or sticky residue on a carrier floor is a consumer defect even when friction remains high.

Recovery time matters after compression. Measure pad height immediately and after 24 hours following warm loaded storage.

Failure analysis should distinguish surface polishing, compound extraction, permanent compression and bond damage because each requires a different correction. A polished microtexture points toward abrasion or counter-surface mismatch; a hard, lighter foot may indicate oil extraction; reduced projection without hardness change suggests compression set. Cross-sections and mass change help separate them. Simply choosing a softer compound can increase initial grip while making warm set and dirt pickup worse. The corrective trial should alter one formulation or geometry variable at a time, then repeat the complete ageing sequence on the same carrier floor. Results belong in a comparison matrix so procurement can see whether a lower-cost compound shifts failure from peel to odour or from wet slide to staining.

A durable non-slip claim requires friction and bond data after combined wash, heat, oil and surface-specific abrasion, not only a test on a new sample.

Balance Sliding Resistance Against Tipping

More grip is not always safer. When horizontal force rises, a bowl can slide, rotate or tip. Which mode occurs depends on friction, applied height, footprint and mass distribution. The preferred design usually begins sliding at a force below the overturning threshold while resisting ordinary feeding contact.

Test mode transitions by increasing force slowly at the rim and recording first movement, first foot lift and overturn. Repeat in four or eight directions and at several fill levels. A low bowl may safely tolerate high friction; a tall insulated or elevated bowl may need a broader base or controlled sliding response.

Rotation is a separate failure. Asymmetric feet can cause the bowl to pivot around one grippy pad and spill toward the opposite side. Pulling through the centre may miss this, so off-axis force at quarter points is included. Contact-pressure maps help identify the pad acting as an unintended hinge.

Carrier restraint changes the sequence. A short strap can stop translation but increase tipping if attached above the base. Anchor near floor level and provide enough articulation that all feet remain loaded. The carrier panel and stitching receive their own proof and permanent-set checks after dynamic loading.

Acceptance should state behaviour, not only force: no tip below 15 newtons, no rotation above an agreed angle, and sliding displacement below the carrier limit.

Data should be plotted as a sequence of events for each direction. For example, first sliding at 13 newtons, first foot lift at 19 and overturn at 27 describes a safe progression more clearly than a single stability value. If foot lift appears before sliding in one direction, engineers can enlarge the support polygon, lower the bowl, redistribute contact pressure or move an anchor point. Adding grip alone would make the sequence worse. High-speed video or simple side markers can capture the first lift consistently, while a marked floor records translation and rotation. The report should include the lowest result rather than averaging a weak direction into stronger ones.

The engineering objective is controlled stability, where ordinary forces do not move the bowl and exceptional forces do not turn excessive grip into a tip.

Nesting Without Deforming the Grip Surface

Non-slip rings project from the base and often prevent tight nesting. Forcing one bowl into another can compress the ring, create flat spots and transfer pigment. Pack design should establish positive stops at rigid surfaces so elastomer carries no long-term stack load.

One option assembles removable rings after nested bowl bodies are unpacked at the kitting station. Another offsets the ring inward so it enters a protected cavity in the bowl below. Stack pitch, assembly labour and user error should be compared using actual production parts. A 25-40% cube reduction is realistic for many rigid bowls.

Paper separators protect food surfaces and reduce blocking with less volume than individual bags. Mixed colours require warm-compression transfer testing, especially black or saturated TPR against pale PP. Packaging ink and adhesive odour must also be compared with an unpacked control after sealed conditioning.

Distribution tests include vibration, carton compression and drops in the final pallet orientation. Afterwards, measure base flatness, pad height, ring retention and friction before judging the pack acceptable. A visually intact ring may have enough compression set to miss the wet target.

Methods can be selected from resources at ASTM International, with severity written into the buyer protocol.

Pallet configuration should preserve the same principle as the unit stack. Cartons are oriented so vertical compression follows rigid walls, pallet overhang remains zero and stretch wrap does not bow side panels into the bowl stack. A warm warehouse simulation under calculated bottom-carton load is more revealing than a short room-temperature compression. After conditioning, samples from the top, middle and bottom layers are compared because load history differs. Inspectors record ring projection, flatness and friction from each level. If the bottom samples recover slowly, reduce layers, strengthen the carton or change the stacking stop; adding a thicker ring may worsen compression and consume the cube saving.

Efficient nesting transfers load through rigid stops and proves friction after distribution; compressed elastomer should never be the hidden price of lower freight cube.

Compound Traceability, AQL and Release Evidence

Production control begins with approved compound identity. Each TPR, silicone or rubber lot records supplier, grade, colour, hardness, density and cure or moulding conditions. A visual colour match is insufficient because different oil or filler packages can look identical while changing friction, odour and migration behaviour.

First-off inspection measures bowl flatness, foot projection, contact map, hardness, pull force, tip mode and bond or ring retention. Data are separated by cavity and direction. When a mould is cleaned or a colour changes, first-off approval repeats because contamination or purge residue can alter the grip surface.

Final random inspection at AQL 2.5 covers appearance, dimensions, assembly, marking and packaging. Wrong compound, exposed sharp edge, detached foot and severe instability should receive separately agreed critical treatment. Quality-system organization can follow the process approach summarized by ISO 9001.

MOQ 500 pieces per colourway supports controlled compound batches. Samples in 6-10 working days establish surface and geometry; bulk production 35-50 days starts after written approval. T/T 30/70 and FOB Xiamen appear beside the friction, ageing and pack requirements.

Our production team retains new and aged reference feet through the SGS-verified production base.

Lot release should reconcile incoming compound mass, moulded quantity, controlled scrap and finished pack count. An unexplained yield change may signal mixed resin, excess regrind or a formulation substitution that hardness checks alone will not expose. Retain one complete bowl and separate foot specimens from the first, middle and final production windows, with sealed floor-substrate coupons used for validation. If a customer reports sliding, the retained system allows the team to reproduce surface, contamination and load instead of testing on an unrelated tile. Corrective action then identifies whether the cause lies in compound, contact geometry, bond, base warp, pack set or carrier-floor variation, and the affected time window can be isolated.

Shipment release requires the same traceable compound to meet dry, wet and oily friction, aged attachment, flatness, tip behaviour and post-pack recovery on the actual carrier floor.
